In December of 2017, we received an inquiry that was requested an automatic space sand bottle filling and capping production line by a Lithuanian customer.

Customer Requirements

  1. 500grams bottle, 40 filling per minute, weight precision within 2%.
  2. 1000grams bottle, 30 filling per minute, weight precision within 2%.

In consider of the high weight precision in such a high filling speed, many suppliers not confirm they can do or not. None of them accept customer’s order before he find us.

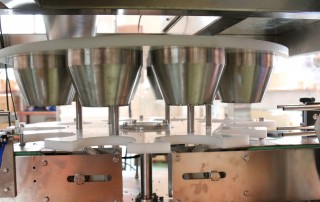

We found the common bottle moving track is bottle one by one move forward, the duration between the every two filling is long. For this customer, we adopt the rotary type bottle moving track makes the weighing and filling more coherent. The machine can reach the packing speed and precision requested and then customer give us this order.

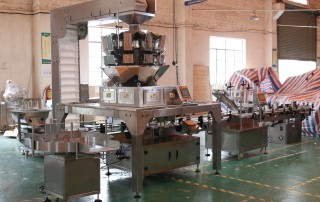

Work flow

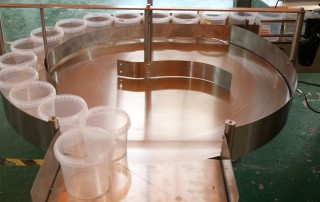

  1. Bottle ordering
  2. Weighing by 10 heads weigher

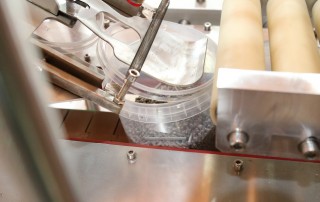

  3. Filling

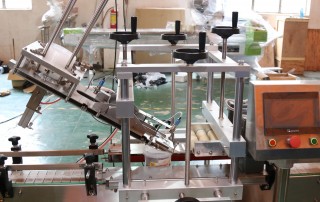

  4. Capping
  5. Labeling

Application

Bottle filling and capping fully automatic for granule with good fluidity such as pet food, nuts, etc.

Features

  1. Full SUS#304 frame and reliable components, machine more durable.
  2. Software programming smooth, easy to operate.
  3. All processes running continuously and fully automatic.
  4. Weighing precision high.
  5. High success rate of capping and labeling.
  6. Each part can be free combination.

Components’s list

Item Brand/Origin
Touch screen SCHNEIDER/FRANCE
PLC SCHNEIDER/FRANCE
Pneumatic parts AIRTAC/TAIWAN
Proximity switch SCHNEIDER/FRANCE
Button SCHNEIDER/FRANCE
RCD SCHNEIDER/FRANCE
Power switch SCHNEIDER/FRANCE
Relay SCHNEIDER/FRANCE
Eye mark AUTONICS/KOREA
