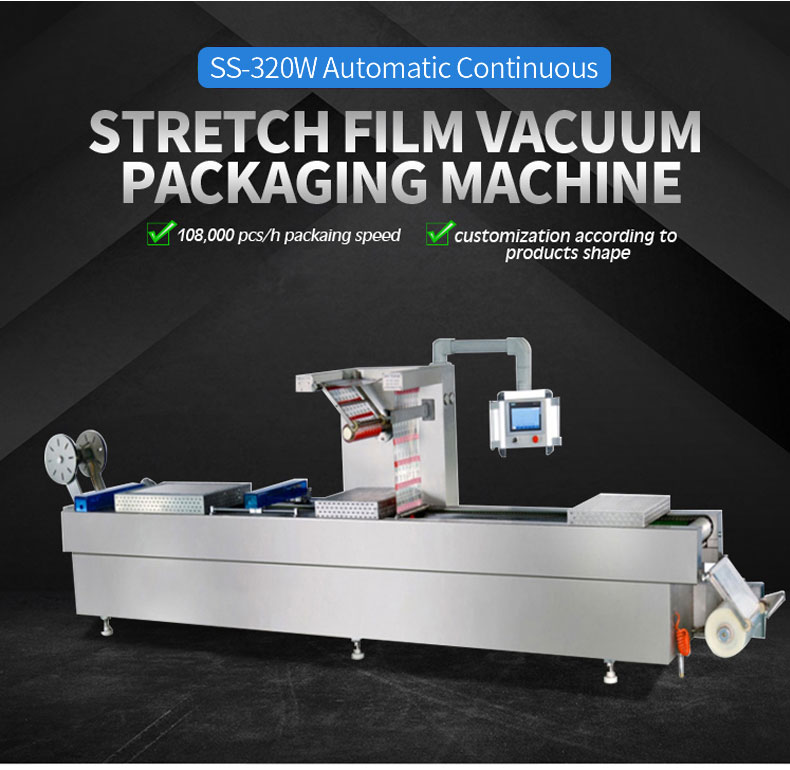

Automatic stretch film vacuum packaging machine
Suitable for vacuum, aeration, skin packaging, etc. of various food, meat products, donkey-hide jujube series products,
seafood, frutta e verdura, pickles, frozen meat, medical products, hardware components, medical machinery, etc.

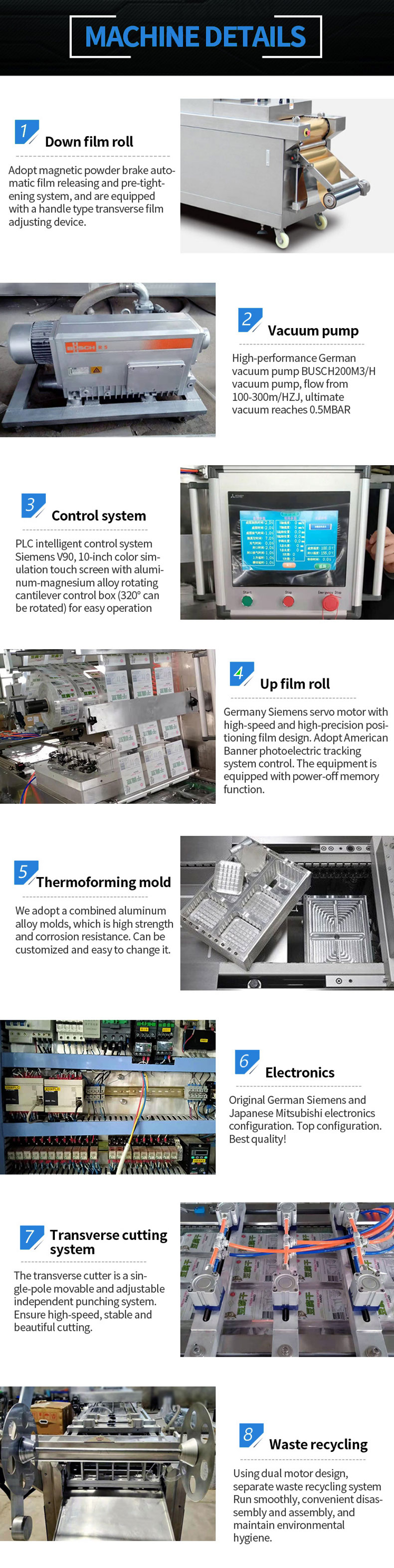

It is controlled by Japan’s Mitsubishi programmable controller, 2310 color touch screen,
Mitsubishi servo drive system is used,
and all electrical appliances such as Japan, Europe, and Taiwan are used.
Equipped with complete safety protection measures

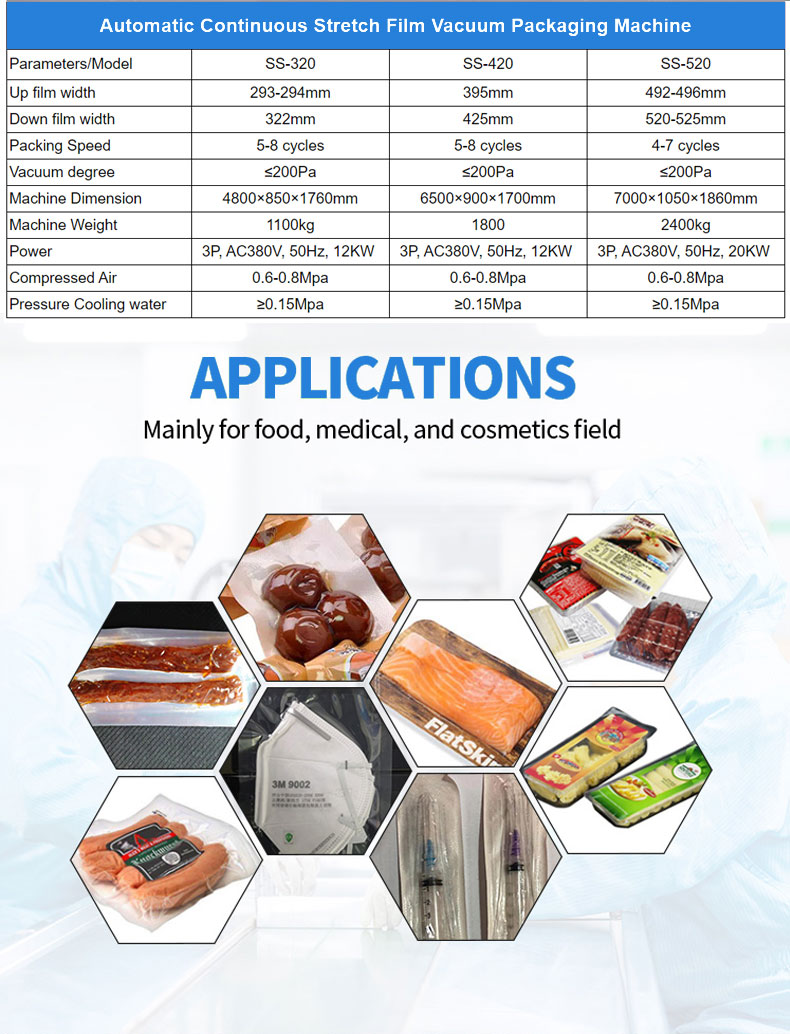

Automatic Continuous Stretch Film Vacuum Packaging Machine | |||
Parameters/Model | SS-320 | SS-420 | SS-520 |
Up film width | 293-294mm | 395mm | 492-496mm |
Down film width | 322mm | 425mm | 520-525mm |
Packing Speed | 5-8 cycles | 5-8 cycles | 4-7 cycles |
Vacuum degree | ≤200Pa | ≤200Pa | ≤200Pa |
Machine Dimension | 4800×850×1760mm | 6500×900×1700mm | 7000×1050×1860mm |
Machine Weight | 1100kg | 1800 | 2400kg |
Power | 3P, AC380V, 50Hz, 12KW | 3P, AC380V, 50Hz, 12KW | 3P, AC380V, 50Hz, 20KW |
Compressed Air | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Pressure Cooling water | ≥0.15Mpa | ≥0.15Mpa | ≥0.15Mpa |
Deliver the right machine for your project. Our equipment is suitable for a wide range of industries and applications. Customize a machine for your business.
Our series of packaging machinery can produce high-quality and innovative pack styles you need. Or contact our experts to talk about your new ideas.
