There are so many kinds of packing machines all over the markets, you may feel very hard to identify which machine is suitable for you. On this page, you will learn how to choose the most suitable packing machine for your products based on pillow bag, 3-side seal and 4-side seal.
CHLB PROVIDES 2 KINDS OF PACKING MACHINES FOR FOOD
HFFS also known as the Horizontal Flow Pack Machine, this kind of machine feeds products from left to right or from right to left horizontally, and only could make the pillow bags(バックシール).
VFFS also known as the Vertical Packing Machine, this kind of machine feeds products from top to bottom, and meets different package types. Such as pillow bags, 3-side seals, and 4-side seals.
| Physical Shape | HFFS | VFFS |
|---|---|---|
| 粉 | ||
| 液体 | ||
| 顆粒 | ||
| チップス | ||
| スティック | ||
| 通常のブロック |
| Bag Types | HFFS | VFFS |
|---|---|---|
| ピローバッグ | ||
| 3-サイドシール | ||
| 4-サイドシール |
The film width is the most important factor for us to confirm which exact packing machine model is suitable for your product. Because the film width determines the bag size to wrap the product.
For HFFS, film width = (product width+product height)/2+30んん.
The product height is also a very important factor to choose a right packing machine, as it determines the machine to allow the product to go through the end sealing jaws.
The product length is not a key factor to choose our HFFS machine Because our horizontal flow packing machine is None-Limited for product length, but if you could provide to us would be great.

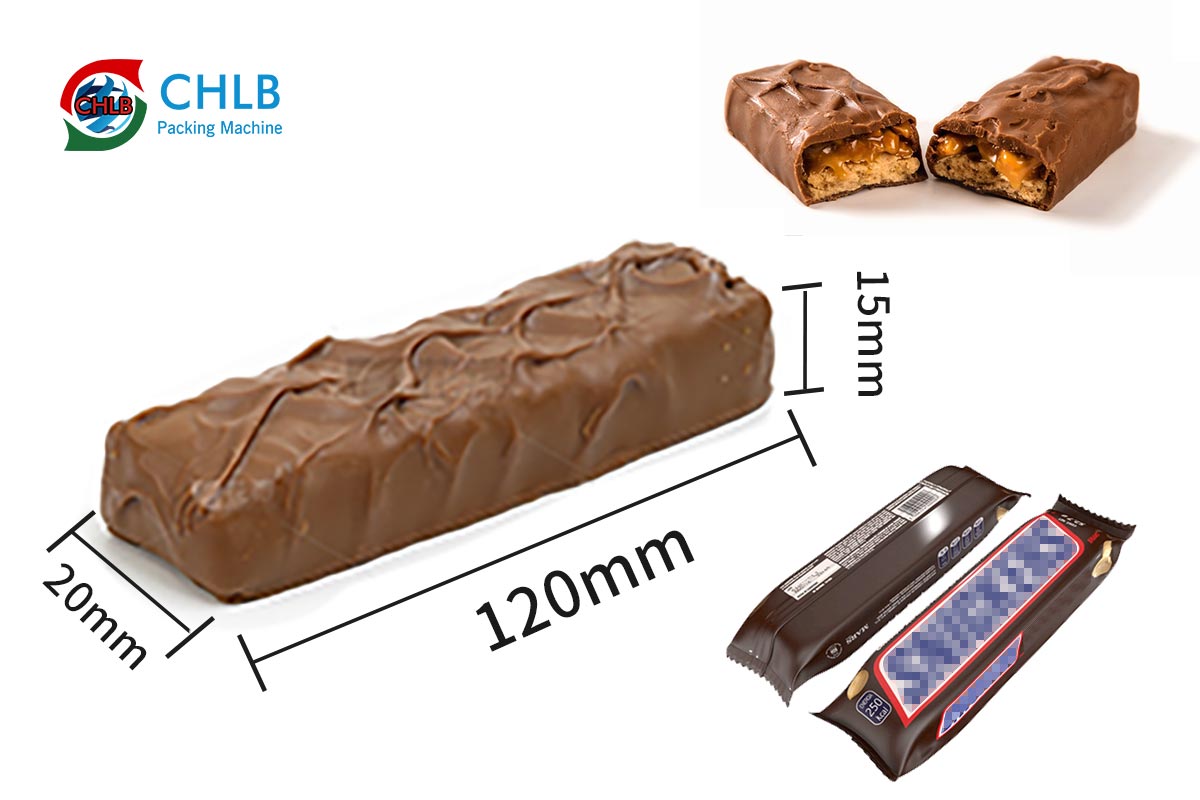

Take the chocolate block as an example: The product width is 20mm, product height is 15mm, then calculate the film width is (20+15)*2+30=100mm.
For VFFS, You need to check your bag width to calculate the film width, There is a difference between a pillow bag and a 3-side seal/4-side seal. So the film width = bag width*2 + 30んん.
Pillow bag: The film width = bag width*2+30mm.
3/4-サイドシール: The film width = bag width*2.
Maybe you are wondering why the above film width calculation formula doesn’t consider the bag height(bag depth or bag thickness). The end-sealing jaws seal the bag edge as half of the film width.
Take the bags for chips as an example: The bag width is 200mm, and The bag length is 250mm. The film width is 200*2+30=430mm.
Below are the reference points you may concern about:
ついに, You must already clearly how to choose a food packing machine. Please don’t hesitate to send us your inquiry.
