カップ付き良質の粘土パッケージ機械

説明

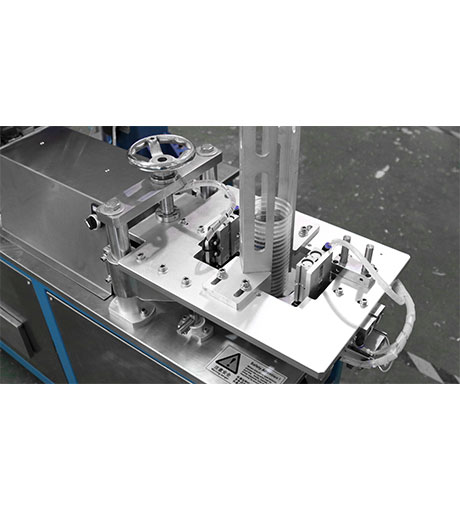

- Cup feeding: to feed the cups automatically by additional feeder in the packing machine line

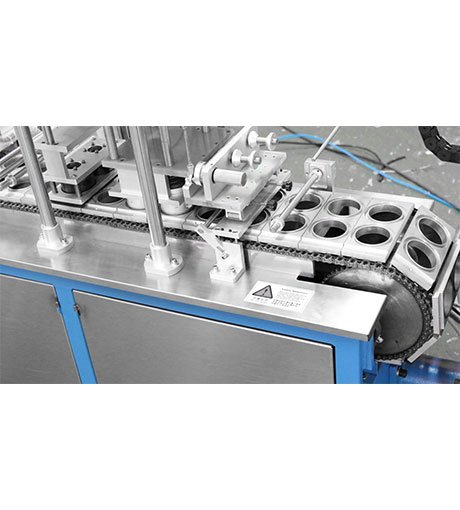

- Cup conveyed by metal chain: machine will convey the cups by pushers of the chain
- Cup sterilization: to sterilize for the cups

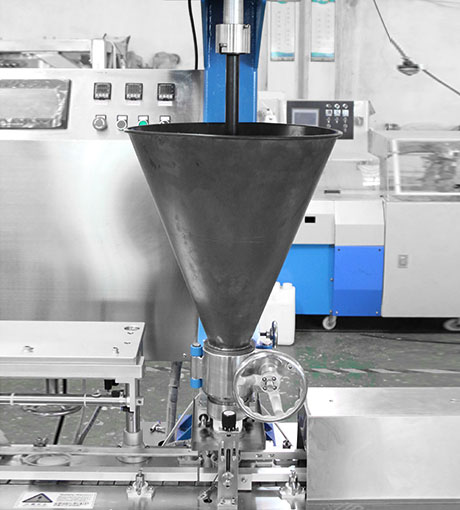

- Feeding product: Worker pull the play dough into this hopper, screw will feed the play dough to the extruder device
- Extruding: to extrude the play dough
- Shape forming: to make the different size of play dough by the different mold
- Cup filling: Cup stop under this device, and finished play dough will fill into the cup
- Cup conveyed by metal chain: After filling, the cups still move ahead

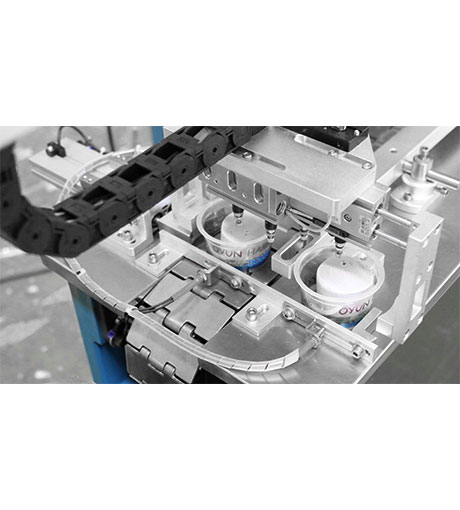

- Cups moving by mechanical arm: mechanical arm carry cups to the sealing/capping machine
- Film sealing: Each cup will first to use the film to sealing the cup mouth
- Cup capping: Then capping the cup mouth

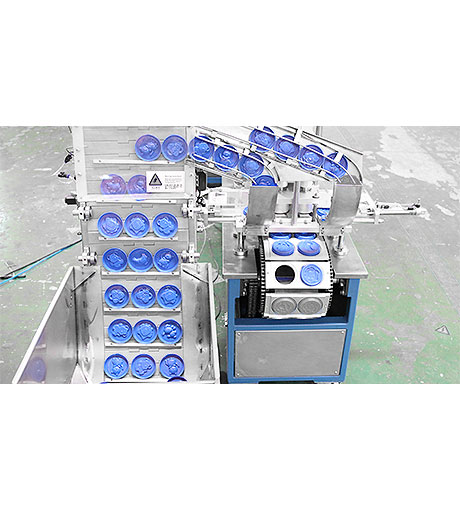

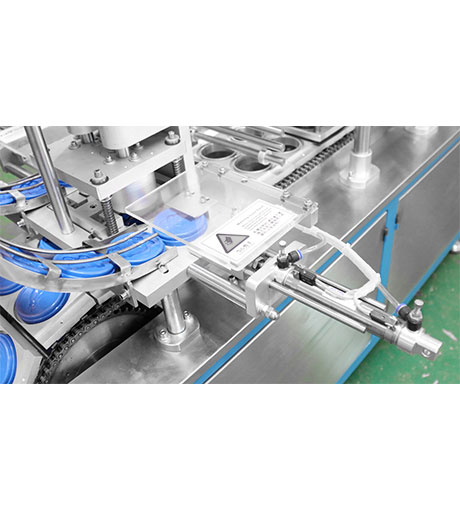

- Feeding cap: to feed the caps one by one above the cup
優れた機能
- Extruding mud, feeding, 切断, putting cups, sealing film(or capping) all in one machine
- Easy operation and clean
- High speed for cutting and packing
- Accurate length cutting
- Food grade stainless steel contact parts
- Robotic Hand, accurate positioning
- Easy to change product weight
- Use different cutting knife for different product
- Touch screen 7”
- Full automatic operation, avoid human intervention
- With patent

無料見積もりを取得する

[CHLBマシン] CB-40B Plasticine play dough Cup Filling capping Packing Machine

Play dough flour dough automatic dropping cup filling capping packing machine

[CHLBマシン] CB-40B automatic play dough cup filling capping packing machine with robotic hand

仕様

モデル	CB-40B
Outer dimension	L3500xW1000xH2200
機械重量	1000KG
Air pressure	0.6-0.85Mpa
Gas consumption	0.45m³/min
容量	30-40cups/min
Packing type	plastic cup
Packing range	30-140g
Power	220V,50ヘルツ,3KW
